Floorplan - 2009 Fleetwood RV Excursion 40E
-
-
-
-
-
42ft long
-
Sleeps 6
-
3 slides
-
Cummins ISC 360HP

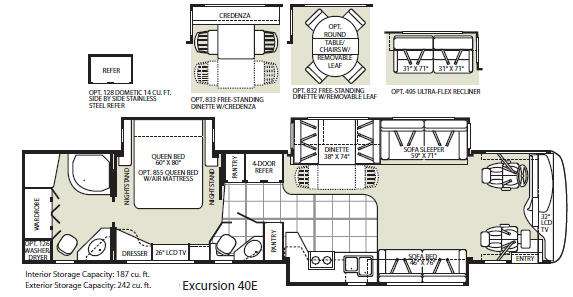

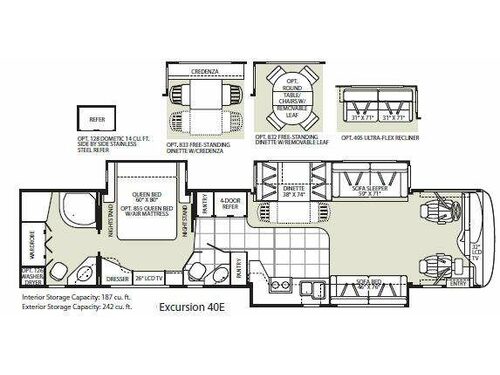

40E Floorplan
Specifications
| Sleeps | 6 | Slides | 3 |
| Length | 41 ft 6 in | Ext Width | 8 ft 6 in |
| Ext Height | 12 ft 10 in | Int Height | 7 ft |
| Exterior Color | Green/Black | Hitch Weight | 10000 lbs |
| GVWR | 32000 lbs | Fresh Water Capacity | 100 gals |
| Grey Water Capacity | 75 gals | Black Water Capacity | 50 gals |
| Furnace BTU | 50000 btu | Fuel Type | Diesel |
| Miles | 76201 | Engine | Cummins ISC 360HP |
| Chassis | Freightliner | VIN | 4UZACWBS49CAL1842 |
Description
Triple Slide Class A Diesel Excursion, Bath w/Ward., Lav., Angle Shower, Opt. Washer/Dryer & Toilet, Queen Bed Slide w/Nightstands, Dresser, 26" LCD TV, Overhead Cab., 1/2 Bath, 4 Dr. Refrig. or Side-By-Side Refrig. Opt., Pantry, Booth Dinette w/Table Extension or Opt. Free Standing Dinette or Round Dinette & Sofa Bed Slide or Opt. Recliners, 2nd Sofa Bed/Double Kitchen Sink & 2 Burner Cook Top Slide, 32" LCD TV Above Cab Area and Much More.
Features
- 10 Gallon Quick Recovery Water Heater w/Direct Spark Ignition (Gas/Electric)
- 16 Gallon Output Water Heater
- 20,000/30,000 BTU Dual Furnaces
- 84" Interior Ceiling Height
- Central Vacuum System
- Complete TuffPEX Plumbing System
- Crown Molding w/Decorative Corner Caps
- Deluxe Roller Bearing, Full Extension Drawer Guides & Transit-Ship Locks
- Demand Water Pump w/Filter
- Dual Roof Mounted, High Efficiency A/C, Chill Grill w/Solar Panel & on Front A/C
- Hardwood Cabinet Doors /Drawers
- Plush Carpet w/Carpet Pad
- Solid Surface Countertops & Sink Covers
- Solid Wood Face Frame Cabinets
- Vinyl Padded Ceiling
- Wall Switches (Includes Switches for Ceiling Lights & Vents)
- Water Heater Bypass
- Whole Coach Water Filtration System
- Wood Finish Return Air Intake For Furnace
- Adjustable 3 Point Seat Belt at Driver & Front Passenger Seats
- Auxiliary Start Circuit
- Backlit Switches & Gauges
- Battery Disconnect System
- CB Radio Ready
- Color Back-Up Monitor w/Side Cameras Integrated in Mirrors
- Cruise Control
- Desco High Output Auto A/C Heat Combo
- Driver/Front Passenger Ultraleather Captain's Chairs w/Reclining Back/Slide Controls/Powered/Heated/Adjustable Arms
- Driver/Passenger Powered Side Shades
- Passenger Armrest w/Integrated Magazine Rack
- Passenger Seat w/Power Footrest & Adjustable Armrest
- Pioneer AM/FM/CD Stereo w/Navigation, Sirius Satellite Radio Ready
- Power Driver/Front Passenger Sun Visors
- Radio Switch Main/Auxiliary Power
- Smart Wheel w/Tilt/Telescoping Steering Wheel
- Soft Surface Automotive Dash
Living Room
- Accent/Night Lighting in Overhead
- Samsung 32" LCD HDTV (40" on the 40X model)
- DSS/Stationary Auto Locating Satellite Dish (Covered)
- Easy Sweep Laminate Flooring Entry to Galley
- Flexsteel Residential Seat Styling
- TV Antenna w/Signal Booster
- Ultraleather Love Seat (39R)
- Ultraleather Sofa Sleeper
- Ultraleather Sofa Bed (40E & 40T)
Bathroom
- Cabinet Toe Kicks
- Coordinated Bath Accessories
- Fan-Tastic Power Roof Vent w/Wall Switch
- Hardwood Bath Door/Trims
- Laminate Floor Tile
- Lighted Assist Handle
- Molded Shower Enclosure w/Skylight
- Porcelain Toilet w/Water Saver
- Stainless Steel Sink
Galley
- 1.4 cu. ft. Convection Microwave Oven w/Stainless Steel Front
- 2 Burner, High Output Electric Flat Panel Cook Top
- Adjustable Cabinet Shelves (Select Cabinets)
- Fan-Tastic Power Roof Vent w/Wall Switch
- Laminate Tile Flooring
- Large, Double Stainless Steel Sink
- Six Person Pull-Out Dinette Table (select models)
- Norcold 12 cu. ft. 4 Door Stainless Steel Refrigerator w/Ice Maker and Water Dispenser
- Single Lever Galley Faucet w/Pull Out Sprayer
- Six Person Pull-Out Dinette Table (select models)
- Slide-Out Dinette Bins w/Latches
- Soap & Lotion Dispensers
- Under Galley Shelving & Wastbasket
- Window Over Sink
Bedroom
- Bedroom Entertainment Center w/Samsung® 26" LCD HDTV and DVD Player
- Bedspread w/Decor Pillows
- Cabinet Storage Above the Bed
- Coffer Ceiling
- Mirrored Wardrobe Doors
- Remote Generator Start
- Restonic Deluxe Pillow Top Innerspring Mattress
- Ventilated Rear Wardrobe w/Cedar Lining, Carpeted Floor & Wire Organizer
- Wardrobe Lighting
- 120V/12V AC/DC Converter
- 120V/12V Wire Raceways
- 2000 Watt Inverter w/Remote
- 50-Amp Service
- 8.0 kW Onan® Quiet Diesel Generator
- Awning Rail/ Drip Molding (Both Sides)
- Dual Battery Charge Control
- Dual Pane Windows w/Screens
- Exterior Graphics Available in 5 Colorways
- Fiberglass Front Quarter Panels
- Fiberglass Front/Rear Caps w/High-Mounted Taillights
- Fiberglass Wheel Well Trims
- Front & Midcoach Docking Lights
- Full Body Paint
- Remote/Heated Exterior Rear View Chrome Mirrors w/Side View Cameras
- Utility Compartment w/Exterior Shower
- Water Pump Switch (Multiple Locations)
- Weather Pro Power Awnings (Patio Awning Includes Wind Sensor)
Automotive
- 10,000-lb. Weight-Distributing Hitch Receiver w/7-Pin Electrical Hook-up
- 360HP Cummins ISC 8.3L Engine
- Aluminum Wheels
- Chrome Spotlight w/Remote Control
- Fog Lamps
- Color Rear and Side Vision Cameras w/Monitor in Radio
- Dual Fuel Fill (One on Each Side)
- Large One-Piece Bonded-in Windshield
- Mud Flaps
- Freightliner Chassis
- Single Motor Denso Windshield Wipers w/Wet Arm
- Tire Valve Extenders
- Underhood Utility Light
- Aluminum Interlocking Floor/Wall/Ceiling Framing
- Color Coordinated Royal Tuff-Ply Roof
- Full-Wall Slide (Patent Pending)
- Heated Water & Holding Tank Compartments
- Power Bridge Chassis (Fleetwood Exclusive)
- Royal Tuff-Ply Radius Roof w/Ducted A/C
- Vacu-Bond Upper/Lower Floors
- Continuous One-Piece Compartment Bulb Seal
- Hidden, Stainless Steel Latch Rods
- Insulated Aluminum Luggage Doors w/Single Paddle Metal Latches & Stainless Steel Hinges
- Lighted Luggage Compartments
- Pass-Thru Storage
- Side Swinging Luggage Doors
Safety/Convenience
- 20' Sewer Hose
- 4 Wheel ABS Air Brakes
- Automotive Safety Glass
- Central Electrical Panel
- Daytime Running Lights
- Doorside Patio Receptacle
- Dual Fresh Water Fills
- Dual Porch Lights (Doorside)
- Entry Door w/Screen Door & Deadbolt Lock
- Four 6V/Deep Cycle House Batteries
- Keyless Entry Remote
- Lighted Entry Assist Handle
- Park Cable Receptacle
- Power Entry Step
- Roof Ladder
- Toilet Tank San-T-Flush System
- Touch Sensor Tank Monitoring System
- Automatic Generator Start System
- CSA Package (Canadian Specs)**
- Heat Pumps
- Washer/Dryer
Living Room
- Desk (39R)
- Leather Euro Recliner Free Standing (Select Models)
- Samsung 32" LCD HDV in Front Overhead (40X only)
- Ultraleather Sofa Sleeper w/Air Mattress
Galley
- 14 Cu. Ft. Dometic Stainless Steel Frost-Free Refrigerator
- 17 Cu. Ft. Norcold 4 Door Refrigerator w/Ice Maker and Water Dispenser in Door (40T)
- Free Standing Dinette w/Credenza
- Free Standing Table & Chairs
Bedroom
- King Adjustable Air Mattress (40T)
- Queen Adjustable Air Mattress
Exterior - Throughout
- Diamond Shield Clear Front Protective Mask
- Entertainment Center w/Samsung 32" LCD HDTV and Stereo
- Exterior Grill and Kitchenette
- Window Awning Package
See us for a complete list of features & available options!
